K549HP
Back to Split Rotary
FEATURES
- High Reliability of 15,000 operating hours
- Split Configuration for System Design Flexibility
- Ideal for Gimbaled Payloads Systems
- Highly Reliable Services in Harsh Environment
- Includes Onboard Temperature Controller
- Use K548 Cold Finger
CONTACT US ABOUT THIS PRODUCT
Specifications

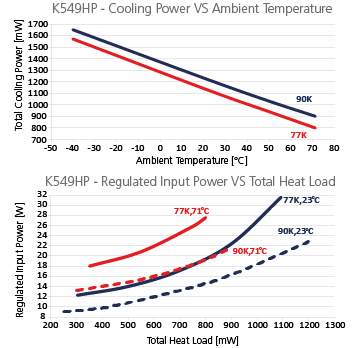

- Total cooling power:
- 900mW@90K@71°C
- MTTF: >15,000hr @ Basic profile
- Steady state input power:
- (300mW@80K@23°C): 12 Wdc typ.
- Maximum input power: 40Wdc typ.
- Cool down time:
- (500J@77K@23°C): 5 min. typ.
- Cold tip temperature range: 65K-110K
- Product maturity: under production
- Cooler weight: 940gr
- Input voltage: 20-32Vdc
- Ambient temperature range:
- Operational: -40°C…+100°C
- Non-Operational: -55°C…+115°C
- Temperature stability: ±0.5K
- Meets environmental conditions per:
- MIL-STD-810
- Acoustic noise: <45dB @ 5 meter
- Service life: 15 years
- Standard warranty*: 3,000hr/2 years
- * Option to propose extended warranty
